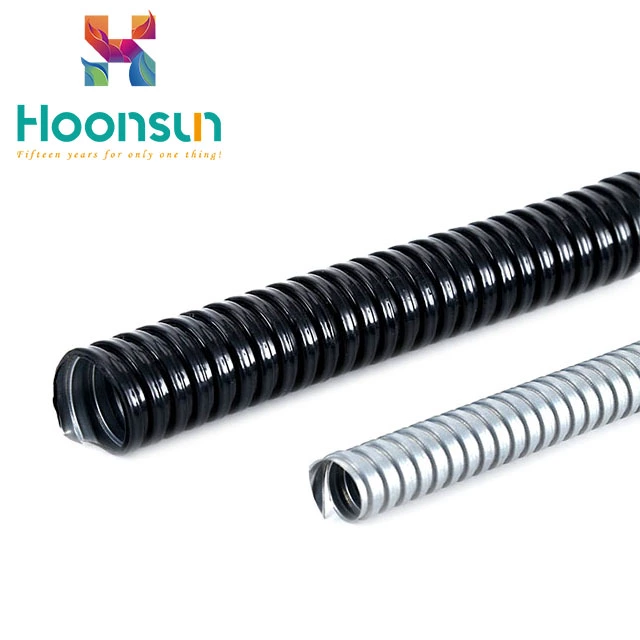

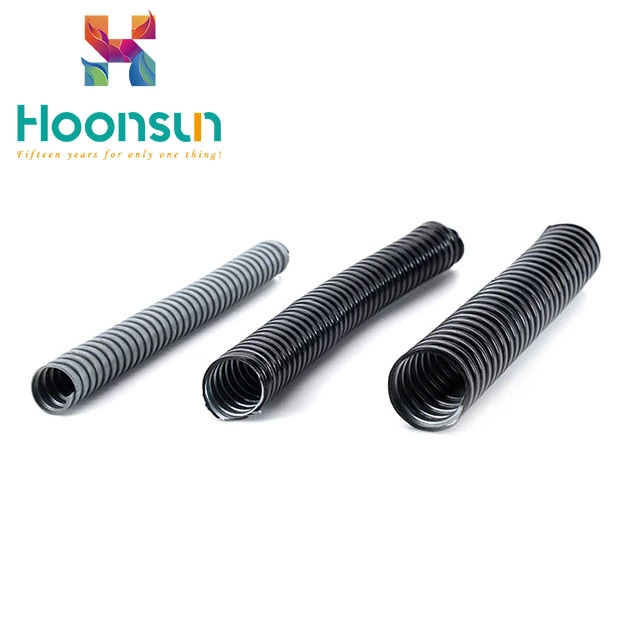

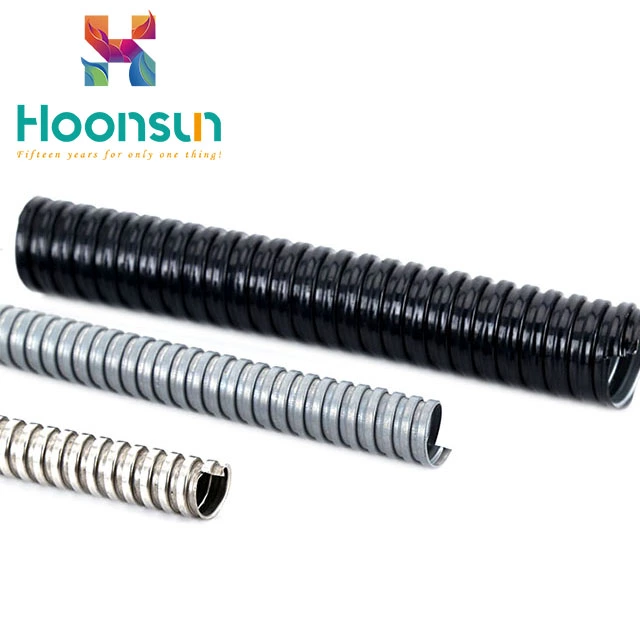

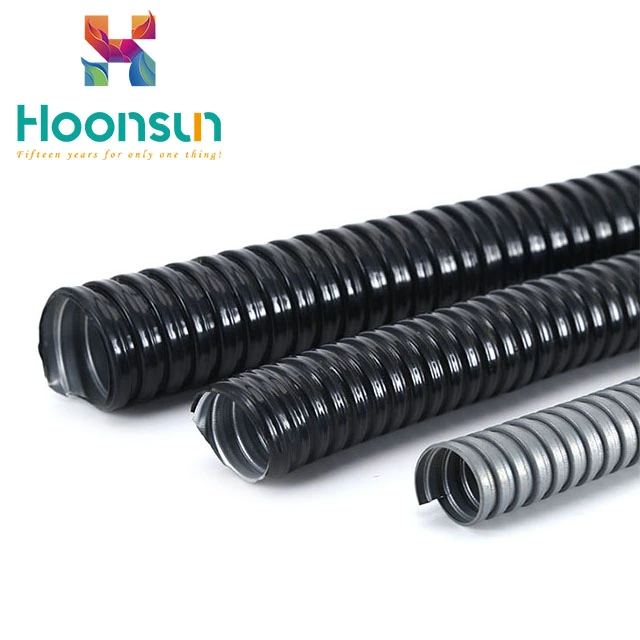

high quality PVC jacketed metallic black metal flexible conduit

Model
HX-PM
Code
7370990000
Material
hot dip galvanized steel plate and special insulation treatment
Approvals
CE ,REACH , ROHS
Temperature Resistance
-30℃-85℃ ,short time to 100℃ .
Contact Now

high quality PVC jacketed metallic black metal flexible conduit












































































































































































型号Item No. 规格 Trade Sizes 内径 d Inner diameter 外径 D Outer diameter 弯曲半径 Bending radius 包装 M Packing
黑色Black 灰色Gray 公制 M 英制 BSP
HX-PM-01B HX-PM-01G 6 3/16'' 6.0±0.3 9.2±0.5 40 100M
HX-PM-02B HX-PM-02G 8 5/16'' 8.0±0.3 11.8±0.5 45 100M
HX-PM-03B HX-PM-03G 10 1/4'' 10.0±0.3 14.5±0.5 55 100M
HX-PM-04B HX-PM-04G 13 3/8'' 12.5±0.3 16.8±0.5 65 100M
HX-PM-05B HX-PM-05G 16 1/2'' 15.5±0.3 20.2±0.5 85 100M
HX-PM-06B HX-PM-06G 20 3/4'' 20.0±0.3 25.0±0.5 100 50M
HX-PM-08B HX-PM-08G 25 1'' 25.0±0.3 30.7±0.5 120 50M
HX-PM-10B HX-PM-10G 32 1 1/4'' 32.0±0.3 38.6±0.5 150 25M
HX-PM-12B HX-PM-12G 38 1 1/2'' 38.0±1.0 44.6±1.0 180 25M
HX-PM-16B HX-PM-16G 51 2'' 51.0±1.0 59.0±1.0 220 10M
HX-PM-20B HX-PM-20G 64 2 1/2'' 64.0±1.5 73.5±1.5 310 10M
HX-PM-24B HX-PM-24G 75 3'' 75.0±2.0 83.5±2.0 350 10M
HX-PM-32B HX-PM-32G 100 4'' 100.0±3.0 109.5±3.0 410 10M
HX-PM-36B HX-PM-36G 125 5'' 125.00±3.0 135.5±3.0 460 5M
HX-PM-38B HX-PM-38G 150 6'' 150.0±4.0 160.5±4.0 500 5M




Q:Are you trading company or manufacturer?

A:We are the factory ,also we are export the goods by ourselves.

Q:How long is your delivery time?

A:Generally we can send out the goods with in 3-7days if the goods are in stock. or It should be 3-7days if the goods are not in stock, it is according to your order quantity.

Q:Do you provide samples? Is it free or not ?

A:Yes, we could offer the samples for free charge but don’t pay the cost of freight.

Q:What is your terms of payment ?

A: Payment <=1000USD,100% in advance. Payment >=1000USD, 30%T/T in advance.

Q: How about the after-sale service?

A: Any feedback or comment are welcomed. We will try to make the best assistant to let you maximum satisfaction.
