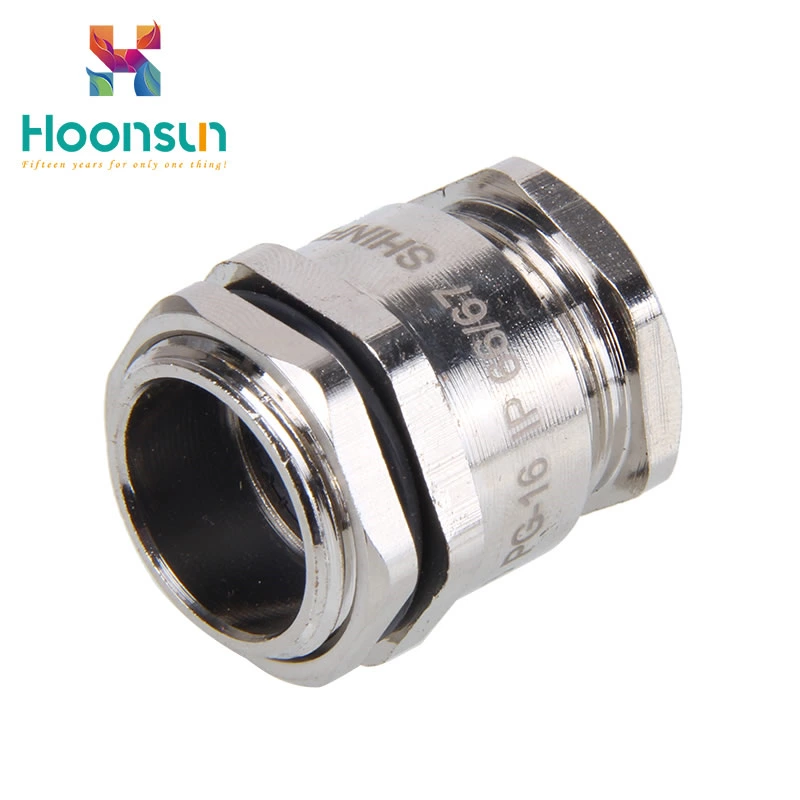

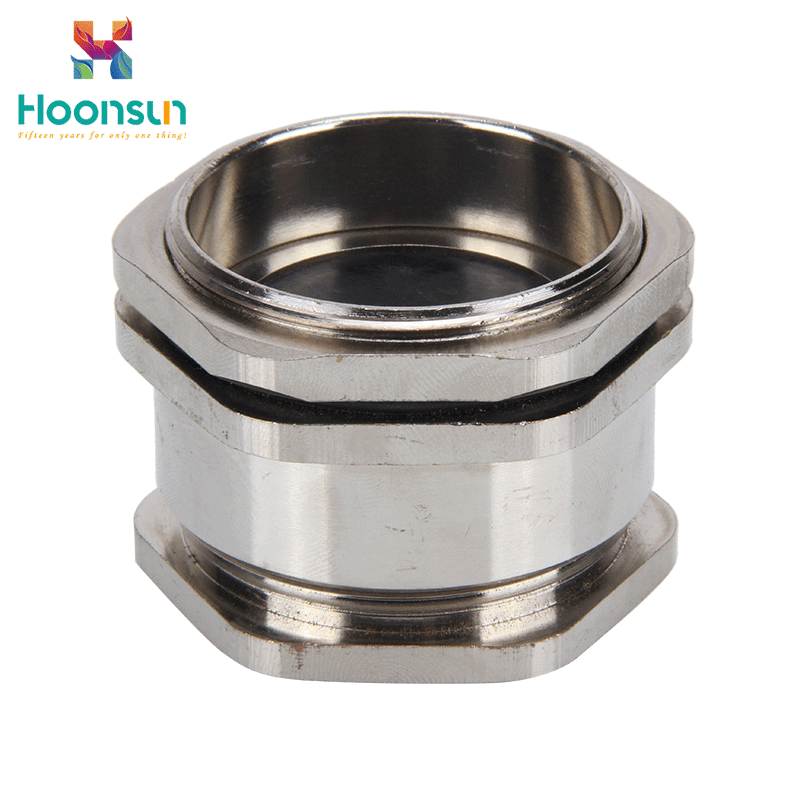

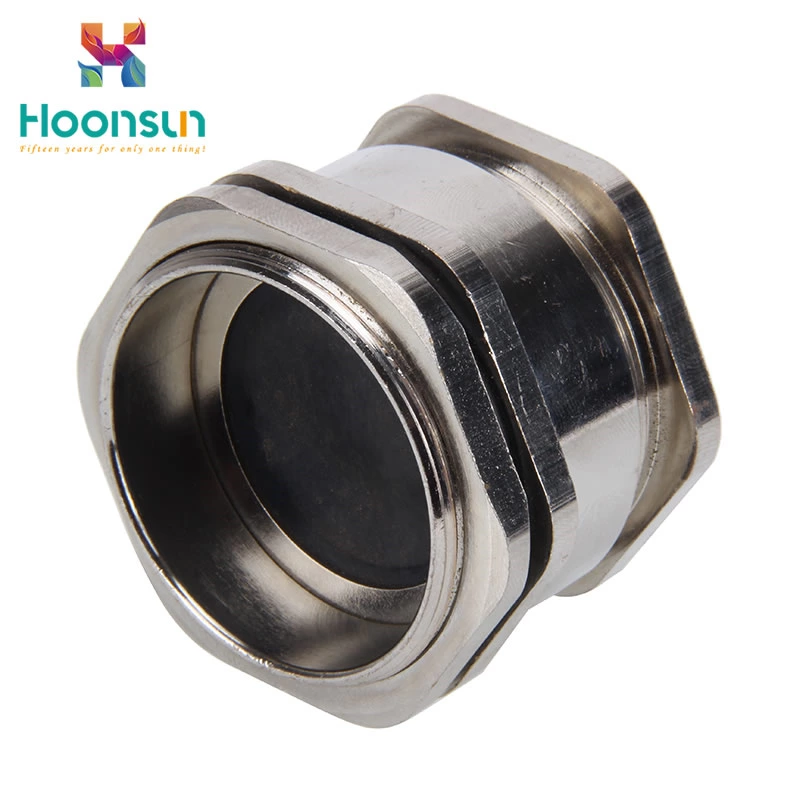

ip68 DCG marine single compression type cable gland

Model
HX-DCG
Code
7419999900
Material
Nickel-plated brass
Size
PG7-PG48
Hermetic seal
NBR, Silicone rubber
O-Ring
NBR, Silicone rubber
Contact Now
ip68 DCG marine single compression type cable gland
ip68 DCG marine single compression type cable gland
ip68 DCG marine single compression type cable gland
ip68 DCG marine single compression type cable gland
ip68 DCG marine single compression type cable gland
ip68 DCG marine single compression type cable gland
ip68 DCG marine single compression type cable gland


















































































































规格

Item
螺纹

Thread
适用范围

Range

mm
螺纹长度

GL

mm
螺纹外经

Thread O.D.

mm
接合长度

Joint Length

mm
扳手径

Spanner size

mm
产品编号

Code
DCG7 PG7 5-6.5 5.0 12.5 16.5 14/15 HX-DCG7
DCG9 PG9 6-8 6.2 15.2 17.5 16/18 HX-DCG9
DCG11 PG11 8-11 6.5 18.6 17.5 20/21 HX-DCG11
DCG13.5 PG13.5 9-11.5 7.5 20.4 20.5 22/23 HX-DCG13.5
DCG16 PG16 11-14 8.0 22.5 22.2 24/26 HX-DCG16
DCG21 PG21 15-17.5 8.0 28.3 23.5 30/32 HX-DCG21
DCG29 PG29 20-23 8.0 37.0 25.5 40/41 HX-DCG29
DCG36 PG36 29-31 10.0 47.0 29.0 50/52 HX-DCG36
DCG42 PG42 32-38 11.0 54.0 33.0 57/57 HX-DCG42
DCG48 PG48 37-44 12.0 59.3 34.0 64/64 HX-DCG48

Q:Are you trading company or manufacturer?

A:We are the factory ,also we are export the goods by ourselves.

Q:How long is your delivery time?

A:Generally we can send out the goods with in 3-7days if the goods are in stock. or It should be 3-7days if the goods are not in stock, it is according to your order quantity.

Q:Do you provide samples? Is it free or not ?

A:Yes, we could offer the samples for free charge but don’t pay the cost of freight.

Q:What is your terms of payment ?

A: Payment <=1000USD,100% in advance. Payment >=1000USD, 30%T/T in advance.

Q: How about the after-sale service?

A: Any feedback or comment are welcomed. We will try to make the best assistant to let you maximum satisfaction.
