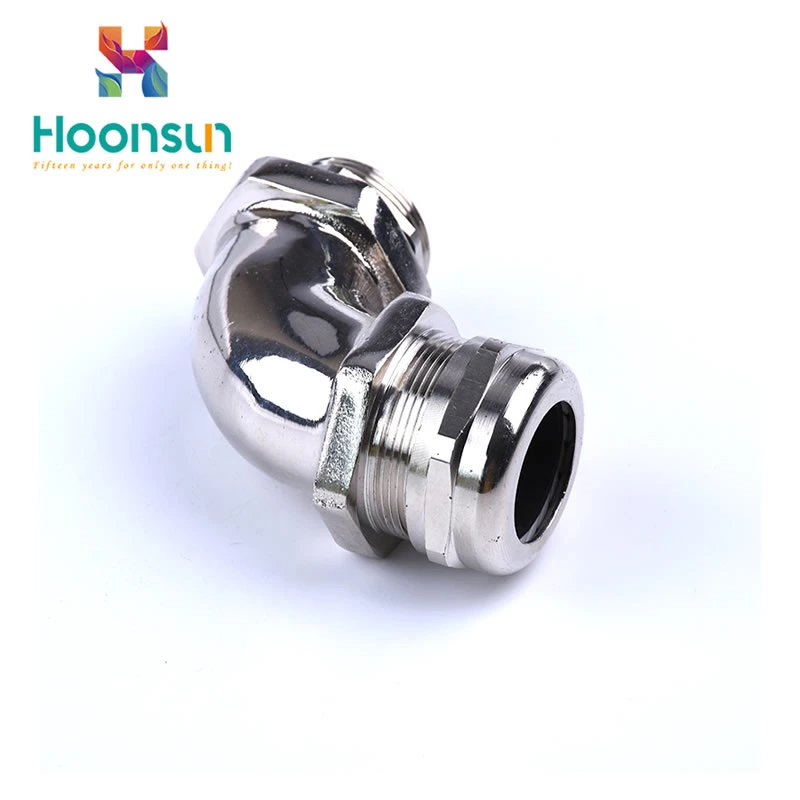

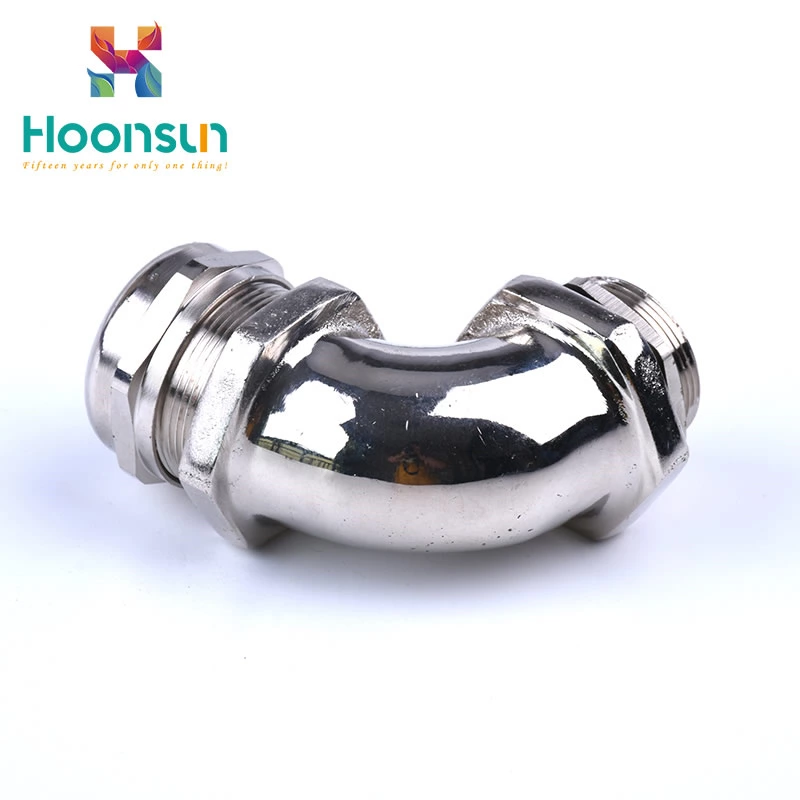

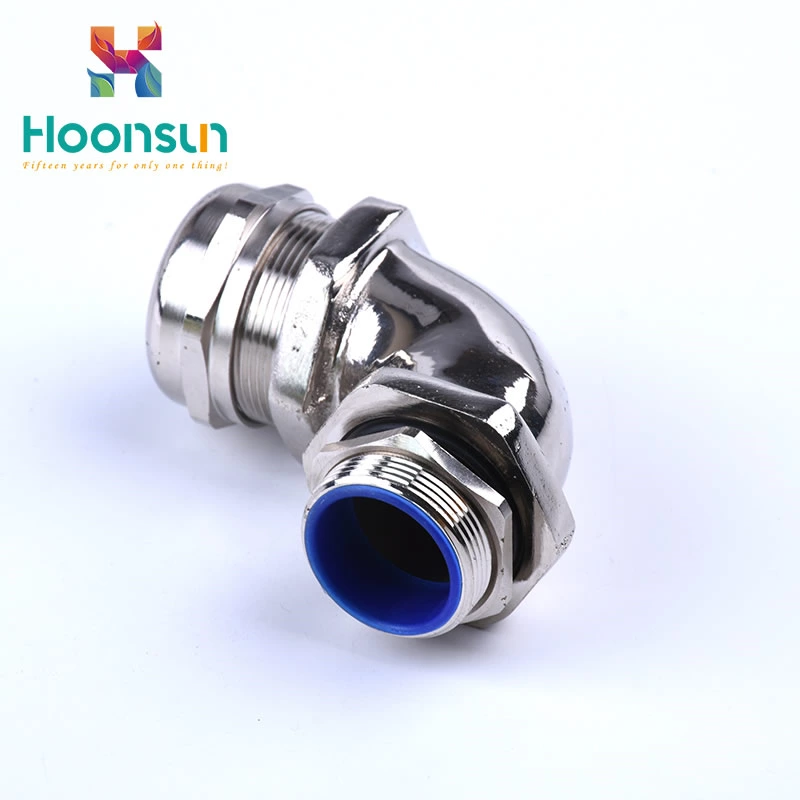

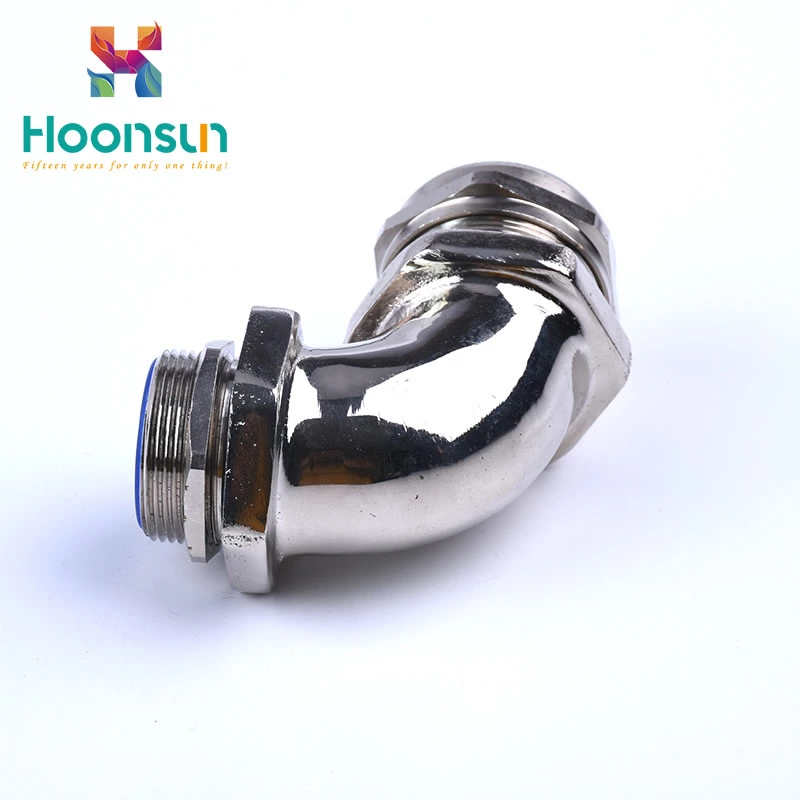

waterproof 90 degree Liquid Tight flexible pipe connector

Model:
HX-NW
Code:
7412209000
Thread Type:
M PG G thread
Material:
nickle plated brass , stainless steel
Approvals:
CE ROHS IP68 REACH
Contact Now

waterproof 90 degree Liquid Tight flexible pipe connector

waterproof 90 degree Liquid Tight flexible pipe connector




















































































































































































































































































90° 45° 规格型号

Size
适配软管

Conduit

Size
ΦB

MM
GL

MM
D

MM
扳手尺寸

Spanner

Size
产品编号

Code
6.5 6 M12/M14/M16 AD10 19 8 33 17 HX-NW系列
10.0 8.5 M14/M16/M18 AD14 24 9 43 21
12.5 11.5 M18/M20/M22 AD17/AD19 28 10 55 25
16.5 15.5 M20/M22/25/M27 AD21 32.5 10 56 29
21.5 20.5 M25/M27/M30/M32 AD27 39 14 73 34
29.5 27.5 M32/M36/M40/M42 AD36 48 14 90 43
38.0 36.5 M40/M42/M48/M50 AD45 58 14 105 55


90° 45° 规格型号

Size
适配软管

Conduit

Size
ΦB

MM
GL

MM
D

MM
扳手尺寸

Spanner

Size
6.5 6 G1/4"/G3/8" AD10 19 8 33 17
10.0 8.5 G3/8" AD14 24 9 43 21
12.5 11.5 G3/8"/G1/2" AD17/AD19 28 10 55 25
16.5 15.5 G1/2"/G3/4" AD21 32.5 10 56 29
21.5 20.5 G3/4" AD27 39 14 73 34
29.5 27.5 G1"/G1-1/4" AD36 48 14 90 43
38.0 36.5 G1-1/4"/G1-1/2" AD45 58 14 105 55

90° 45° 规格型号

Size
适配软管

Conduit

Size
ΦB

MM
GL

MM
D

MM
扳手尺寸

Spanner

Size
6.5 6 PG7/PG9 AD10 19 8 33 17
10.0 8.5 PG9/PG11 AD14 24 9 43 21
12.5 11.5 PG11/PG13.5 AD17/AD19 28 10 55 25
16.5 15.5 PG13.5/PG16 AD21 32.5 10 56 29
21.5 20.5 PG16/PG21 AD27 39 14 73 34
29.5 27.5 PG21/PG29 AD36 48 14 90 43
38.0 36.5 PG29/PG36 AD45 58 14 105 55




Q:Are you trading company or manufacturer?

A:We are the factory ,also we are export the goods by ourselves.

Q:How long is your delivery time?

A:Generally we can send out the goods with in 3-7days if the goods are in stock. or It should be 3-7days if the goods are not in stock, it is according to your order quantity.

Q:Do you provide samples? Is it free or not ?

A:Yes, we could offer the samples for free charge but don’t pay the cost of freight.

Q:What is your terms of payment ?

A: Payment <=1000USD,100% in advance. Payment >=1000USD, 30%T/T in advance.

Q: How about the after-sale service?

A: Any feedback or comment are welcomed. We will try to make the best assistant to let you maximum satisfaction.
