Nylon Cable Glands from Zhejiang Hongxiang Connector Co., Ltd.
Publish Time: Author: Site Editor Visit: 7
Complete Specifications & Application Scope
1. Product Overview
This series of nylon cable glands is manufactured from high-grade eco-friendly PA66 nylon, equipped with high-performance sealing components. It features waterproof and dustproof protection, tensile resistance, aging resistance, corrosion resistance, and excellent electrical insulation and flame-retardant properties. Compatible with major international thread standards and a full range of cable diameters, the product holds multiple authoritative international certifications. It is designed for fixing, sealing, and strain relief of non-armored cables, widely applied in both indoor and outdoor general and mildly harsh industrial scenarios, serving as a standard connecting component for electrical cabinets, equipment enclosures, lighting systems, and automation systems.
2. Core Materials & Basic Performance
Main Materials
- Body, compression nut, locknut: Eco-friendly PA66 nylon (UL certified)
- Flammability class: Standard UL94 V-2, customizable to V-0 high flame-retardant grade
- Seals / O-rings: Standard EPDM; optional NBR and Silicone for oil resistance, wide temperature resistance, and acid/alkali resistance environments
Environmental & Mechanical Performance
- Ingress protection: IP68 – 10 bar (long-term waterproof sealing under rated water depth, no leakage)
- Operating temperature: Static -40℃ ~ +100℃, short-term up to 120℃; Dynamic -20℃ ~ +80℃, short-term up to 100℃
- Mechanical properties: Vibration resistant, tensile resistant, effective cable strain relief, preventing loosening and sheath damage
- Chemical resistance: Resistant to oil, weak acids and alkalis, salt spray, and daily chemical solvents; no risk of metal corrosion
- Standard colors: RAL7035 light gray, RAL9005 black; custom colors (white, blue, etc.) available
Certifications
CE, RoHS, REACH, PAHS, SGS environmental certification, compliant with EN50262 industrial standard, suitable for domestic and export projects.
3. Complete Specification Parameters
Thread Types
Covers four major international thread standards, direct matching with various equipment enclosure openings without adapters:
- Metric: M8×1.25, M10×1.5, M12×1.5, M16×1.5, M20×1.5, M25×1.5, M32×1.5, M40×1.5, M50×1.5, M63×1.5
- PG (German standard): PG7, PG9, PG11, PG13.5, PG16, PG21, PG29, PG36, PG42, PG48
- G / BSP / PF (British standard): G1/8", G1/4", G3/8", G1/2", G3/4", G1", G1-1/4", G1-1/2", G2"
- NPT (American standard): NPT1/8", NPT1/4", NPT3/8", NPT1/2", NPT3/4", NPT1", NPT1-1/4", NPT1-1/2", NPT2"
Common Models, Dimensions & Compatible Cable Diameters
| Thread Specification | Suitable Cable O.D. (mm) | Thread Length (mm) | Recommended Wrench Size (mm) | Typical Application |
| M8×1.25 | 2–5 | 8.0 | 14 | Small sensors, thin wire harnesses |
| M12×1.5 | 3–5, 4–8 | 8.5 | 18/19 | Control signal cables, small equipment |
| M16×1.5 | 5–10, 6–12 | 10.0 | 22 | Standard wiring in control cabinets |
| M20×1.5 | 6–12, 8–14 | 10.0 | 27 | General power cables, lighting equipment |
| M25×1.5 | 10–14, 13–18 | 11.0 | 32 | Medium-heavy cables, distribution boxes |
| M32×1.5 | 15–23 | 12.0 | 36 | Main power cables for high-power equipment |
| PG7 | 3–6.5 | 8.0 | 19 | European-standard equipment, small electric controls |
| PG9 | 4–8 | 8.5 | 22 | General industrial controls, luminaires |
| PG11 | 5–10 | 9.0 | 24 | Signal cables for automation equipment |
| PG13.5 | 6–12 | 10.0 | 27 | Mainstream size for European-standard cabinets |
| PG16 | 10–14 | 10.0 | 30 | Power cables, outdoor equipment |
| PG21 | 13–18 | 11.0 | 36 | Heavy-duty cables, large enclosures |
Structure Components

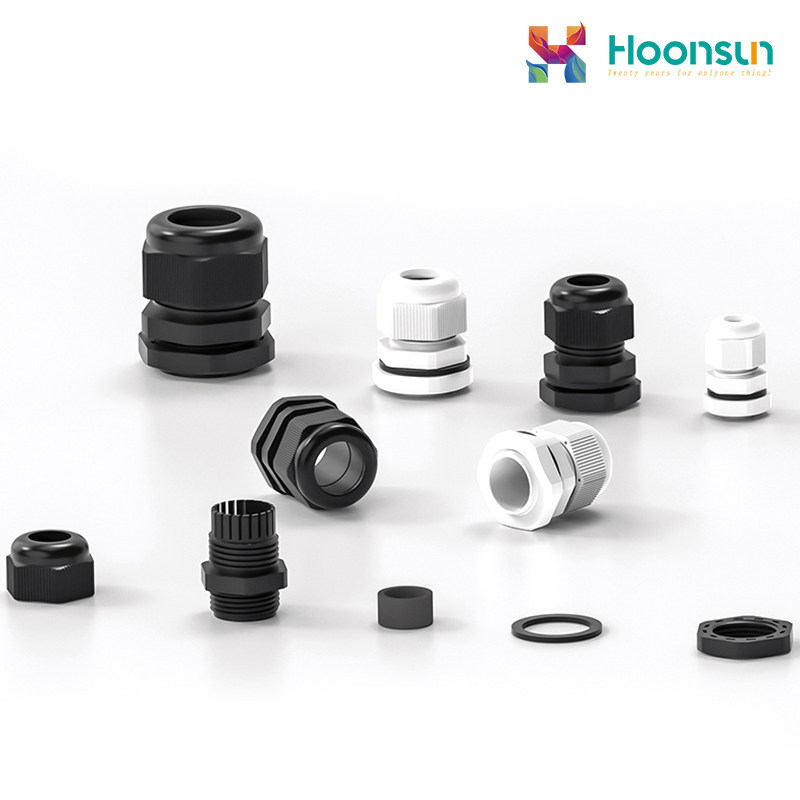

Standard 5-piece set: gland body, locknut, sealing washer, clamping claw, compression nut. Integrated / bend-resistant spiral neck versions are optional for enhanced cable bending protection.
4. Application Scope
Applicable Cable Types
- Round non-armored power cables, control cables, and signal cables
- Cables with PVC, rubber, or PU sheaths
- Single / multiple thin wire harnesses (multi-hole version available)
- Not applicable: High-voltage armored cables, explosion-proof extra-high-voltage special cables (custom Ex-proof version required)
Applicable Industries & Equipment
- Industrial Automation & Control - PLC control cabinets, servo systems, sensors, inverters, HMI, robot bodies and cable assemblies, for tidy cabinet wiring and sealing protection.
- Power & Distribution Equipment - Low-voltage distribution boxes, metering boxes, switch cabinets, outdoor terminal boxes, PV combiner boxes, energy storage cabinets, suitable for indoor and outdoor rainproof environments.
- Lighting & Municipal Engineering - Outdoor street lamps, floodlights, landscape lighting, tunnel lighting, surveillance cameras, traffic signal devices, for long-term outdoor sun and rain exposure.
- New Energy Equipment - PV inverters, string inverters, outdoor charging piles, energy storage converters, with high and low temperature resistance, UV resistance, waterproof and dustproof performance.
- Machinery & Equipment Manufacturing - Packaging machinery, textile machinery, conveying equipment, fans, water pumps, air compressors, with vibration resistance and oil resistance.
- Rail Transit & Engineering Vehicles - Subway carriage equipment, EMU auxiliary electrical cabinets, construction machinery, special vehicles, suitable for bumpy and vibrating conditions.
- Shipbuilding & Offshore Engineering (Non-hazardous Areas) - Ship deck equipment, cabin control cabinets, offshore platform low-voltage electrical enclosures, salt-spray resistant, non-corrosive, reliably insulated.
- Electronics & Telecommunications - Telecommunication cabinets, base station antennas, outdoor weak current boxes, security equipment, suitable for harsh outdoor environments and long-term aging resistance.
Applicable Environments
- Indoor standard electrical environments, clean workshops
- Outdoor open-air, rain, sunlight, high humidity, and dusty environments
- Mildly corrosive environments: food workshops, weak acid/alkali workshops, coastal salt-spray areas
- Vibrational environments: automated production lines, engineering machinery, vehicle equipment
- Wide-temperature environments: frigid outdoor areas, high-temperature workshops, outdoor enclosures with large temperature fluctuations
Non-applicable Scenarios
- Long-term immersion in highly corrosive chemicals (strong acids, strong alkalis, strong organic solvents)
- Explosion-proof high-risk zones such as coal mines and petrochemical facilities (special Ex-certified version required)
- Direct contact with ultra-high heat sources or long-term exposure over 120℃
- Fixing of high-voltage armored cables and oversized special cables
5. Selection & Installation Guidelines
- Match the cable diameter range according to the actual outer diameter of the cable, preferably within the middle interval to ensure sealing and clamping force.
- Select the thread according to the equipment interface; prefer the original thread of the equipment to avoid reducing the protection level with adapters.
- EPDM or silicone seals are recommended for outdoor, high-humidity, and salt-spray environments; NBR seals for oil-resistant applications.
- Tighten the compression nut evenly during installation; avoid over-tightening to prevent damage to nylon threads. Use O-rings and gaskets to ensure IP68 sealing.
6. Summary of Product Advantages
- Full series in PA66 material, lightweight, high toughness, electrically insulating, non-rusting
- IP68 deep waterproof rating, suitable for long-term use in outdoor and underwater low-voltage equipment
- Full thread coverage and full cable diameter range, one-stop matching for global equipment openings
- Wide temperature range, aging resistant, salt-spray resistant, long service life and low maintenance cost
- Complete certifications, compliant with export standards, suitable for global procurement
- Standardized structure, quick installation, can be equipped with bend-resistant tails to extend cable lifespan
